Rujie & Reyee |
Send Enquiry |

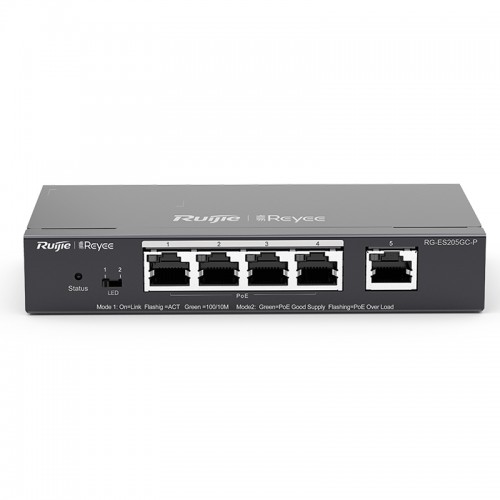

RG-ES205GC-P 5-Port Gigabit Smart POE Switch, 5 Gigabit RJ45 Ports including 4 PoE/POE+ Ports, 54W PoE power budget, Desktop Steel Case |
- Port: 4 × 10/100/1000 Base-T ports (PoE/PoE+), 1 × 10/100/1000 Base-T port
- Maximum output power per PoE port: 30W
- Maximum PoE output power per switch: 54W
- Switching capacity: 10Gbps
- Packet forwarding rate: 7.44Mpps
- Surge protection: Common mode: 4KV
- Electrostatic discharge: Air discharge: 6KV, Contact discharge: 4KV
- Power consumption: ≤60W
- Power supply: External power adapter
- MAC capacity: 2K
- Static MAC address: 16
- VLAN: Support 802.1Q VLAN
- Port management: Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off
- L2 features: Support port mirroring, loop protection, cable detection
- Dimensions (WxDxH): 148*78*26 mm
